Year

2014

Manufacturer

AMERICAN AUGERS

Model

MCM4000

Hours

1,745

Condition

Used

Stock Number

DRSCONOS

Hours Meter

Accurate / Verified

Description

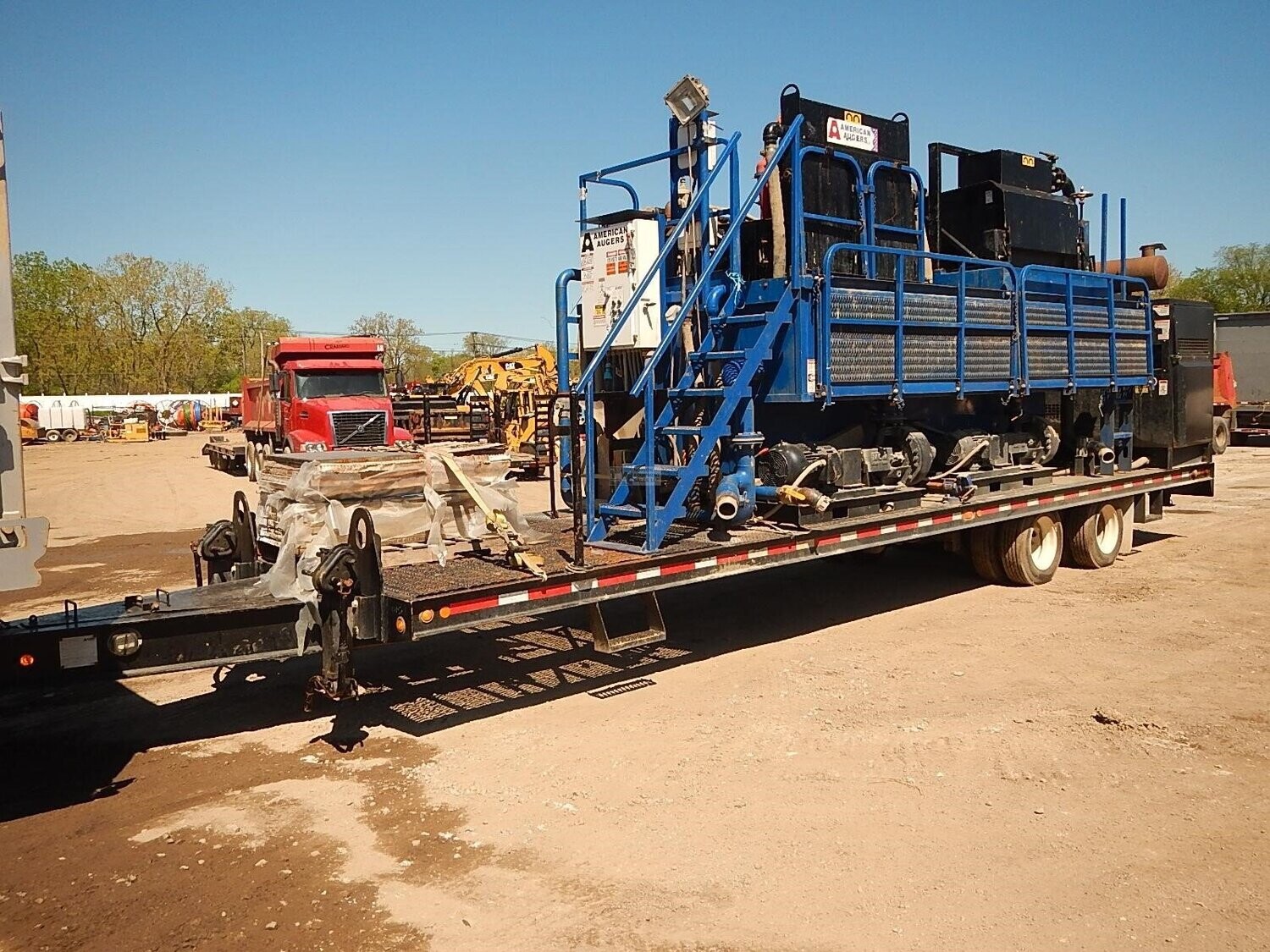

Only 1,745 Hours on this One Owner Mud Recycler Includes Extra Screens Work Ready-Delivery and Financing Available Complete Specs: POWER TRAIN:Generator Set: Caterpillar D125-6 114 kW, Prime Rating 480 volt, 60 Hz with 120/208 volt accessory circuit for work lights, heater, etc. Fuel Capacity: 42 US Gallons (159 L) Noise Rating: 97 dB(A) without attenuation OPERATING CONTROLS Remote Controls: Pendant for Offload Valve Start/Stop, Pendant for Trash Pump Start/Stop MUD PUMPING SYSTEM Main Pump: Centrifugal Mud Pump Pump Motors: (1) 3-Phase Electric, 30 HP (22 kW) 480 V for Mixing/Agitation -Inlet Size: 6" (152 mm) -Outlet Size: 5" (127 mm) -Impeller Size: 10" (254 mm) (1) 3-Phase Electric, 20 HP (14 kW) 480 V for Charging of Hydro-Cyclones -Inlet Size: 4" (101 mm) -Outlet Size: 3" (76.2 mm) -Impeller Size: 10" (254 mm) Bentonite Mixer: Polyethylene constructed dry bentonite mix hopper Other Features: Discharge Hose - (2) 3" x 50' (76.2 mm x 15.2 m) CLEANING SYSTEM Linear Motion Shakers: 1st with 27 square foot (2.51m2) area, 2nd with 18 square foot (1.67m2) area Shaker Screens: (3) 50 mesh included, (2) , 140 mesh included, Various additional mesh sizes available 1st Cut Shaker Cleaning Capacity: Estimated 300 US Gallons (1,135 L/per minute) Desilting System: (7) 5" (127 mm) desilter hydro-cyclones – manifold mounted Desilting System Cleaning Capacity: Estimated 560 US Gallons (2,120 L/minute) TANKS Screen Tank: 1,333 US Gallons (5,045 L) capacity Clean Fluid/Mixing Tank: 2,667 US Gallons (10,095 L) capacity Other Features: Tanks designed with 18" (457 mm) cleanout ports TRANSPORT Standard Mounting: Tandem axle pintle hitch trailer Axle Spacing: 3'6" (1.06 m) DIMENSIONS Maximum Length: 38'6" (11.7 m) Maximum Height: 13'3" (4 m) Maximum Width: 98.4" (2.5 m) WEIGHT Total Weight: 25,580 lbs (11,603 kg) WASH DOWN SYSTEM Fluid Tank: 110 US Gallon (416 L) polyethylene tank Maximum Pressure: 1,500 psi (103 bar) Fluid Discharge: 4-1/2 US Gallons (17 L)/per minute capacity Hose: 100' (30.5 m) Misc: Hose Reel and Wash Down Sprayer (included) PRODUCT OPTIONS Generator Set: 50 Hz Electrical Operating System Gooseneck Trailer : Axle Spacing: 4' (1.21 m), King Pin Size: 2" (50.8 mm)

Mixing System

Yes

Mixing System Capacity

4,000 gal

Includes Trailer

Yes

Shipping Length

38 ft 6 in

Shipping Width

1,180 in

Shipping Height

159 in

Shipping Weight

25,580 lb
